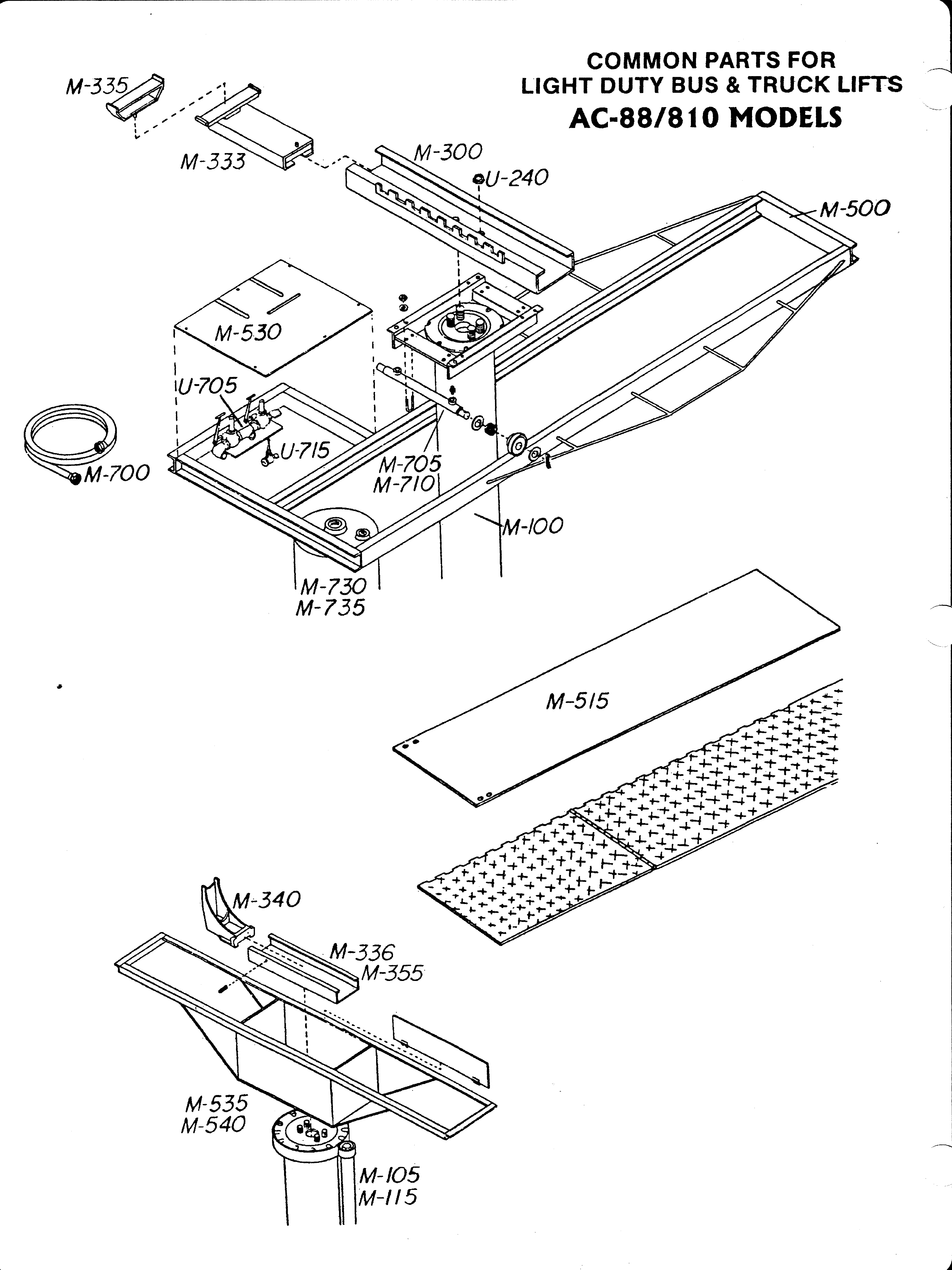

In Ground Movable Piston and Rail Lifts Diagram 1 Diagram 2
| In Ground Movable Piston Parts List |
| PART # |
DESCRIPTION |
APPLICATION |
| M-740 |
75 Gallon Tank with Stand |
AC-1012 |
| M-745 |
Shift Handle |
AC-88/810 |
| U-745 |
Muffler |
All Air Oil Models |
| M-750 |
Ratchet Handle |
AC-10 Models |
| U-750 |
Tank Stand |
All Models |
| M-755 |
Ratchet Assembly |
AC-10 Models |
| M-760 |
Ratchet Chain Per Foot |
AC-10 Models |
| M-762 |
Master Link |
All -10/12 Models |
| U-760 |
Tank Fill Tube |
All In-Ground Tanks |
| M-765 |
Front Chain Sprocket Assembly |
AC-10 Models |
| M-770 |
Rear Chain Sprocket Assembly |
AC-10 Models |
| M-775 |
Directional Valve |
Electric Oil Models |
| U-785 |
Low Oil Control Float |
All Air-Oil Models |
| M-790 |
Manifold |
All AC Models |
| M-800 |
PRM Motor Only 7.5 H.P./3 Phase |
|
| M-825 |
PRM Pump Only |
|
| M-830 |
Core Valve 2-Post Non-Electric |
|
| M-835 |
Rebuild Kit for Core Valve w/3/4″ Ports |
|
| M-840 |
Core Valve 2-Post Electric |
|
| M-845 |
Rebuild Kit for Core Valve w/1″ Ports |
|
| M-846 |
Cire Valve Handle Return Spring |
|
| M-847 |
Core Valve Control Handle |
|
| M-848 |
Core Valve Directional Handle |
|
| In Ground Rail Parts List |
| PART # |
DESCRIPTION |
APPLICATION |
| R-100 |
Cylinder 8 5/8″ |
AP-88 & AP-810 Front |
| R-105 |
Cylinder 8 5/8″ |
AP-88 Rear |
| R-110 |
Cylinder 10 5/8″ |
AP-810 Rear |
| R-115 |
Cylinder 10 5/8″ |
HDH-1010 Front & Rear |
| R-120 |
Cylinder 10 5/8″ |
HDA-1010 Front & Rear |
| R-125 |
Cylinder 12 5/8″ |
HDH-1212 Front & Rear |
| U-200 |
10 5/8″ Packing |
All 10 5/8″ Pistons |
| U-201 |
10 5/8″ Packing w/Spring |
All 10 5/8″ Pistons |
| U-205 |
10 5/8″ Retainer Ring |
Al 10 5/8″ Pistons |
| U-210 |
Felt Wiper |
All Models |
| U-212 |
10 5/8″ Rubber Wiper |
All 10 5/8″ Pistons |
| U-215 |
8 5/8″ Packing |
All 8 5/8″ Pistons |
| U-216 |
8 5/8″ Packing w/Spring |
All 8 5/8″ Pistons Older Models |
| U-220 |
8 5/8″ Retainer Ring |
8 5/8″ Pistons |
| U-232 |
8 5/8″ Rubber Wiper |
All 8 5/8″ Pistons |
| U-235 |
Superstructure Nut |
All Rail Models |
| U-245 |
12 5/8″ Retainer Ring |
HDH1212/HDA1212 |
| U-250 |
12 5/8″ Packing |
HDHI212/HDA1212 |
| R-300 |
Rear Adapter |
AP-88 |
| U-301 |
Single Position Wheel Dish |
All Rail Types . |
| R-305 |
Rear Adapter |
AP-810 |
| R-310 |
Front Adapter |
AP Models |
| R-315 |
Front 4WD Adapter |
AP Models |
| R-320 |
Front Saddle |
HD Models |
| R-325 |
Front Saddle Adapter |
HD Models |
| R-330 |
Rear Adapter |
HD Split Rail Models |
| R-335 |
Rear Tip Over Adapter |
HD Models |
| R-400 |
Rear Superstructure |
AP-88 |
| R-405 |
Rear Superstructure |
AP-810 |
| R-500 |
Rear Superstructure Box |
AP-88 |
| R-505 |
Rear Superstructure Box |
AP-810 |
| R-600 |
Locking Leg |
AP Models Rear |
| R-605 |
Locking Leg |
AP Models Front |
| R-650 |
Locking Leg |
HD Models |
| U-700 |
Oil Control Valve Gate Type |
All Except Semi-Hydraulic Models |
| U-701 |
Oil Control Valve Ball Type |
All Except Semi-Hydraulic Models |
| U-710 |
Oil Control Handle Gate Type |
Wall Type |
| U-715 |
Air Valve Assembly Lock Type |
All Full-Hydraulic Models |
| U-720 |
Air Valve Assembly Deadman |
All Semi-Hydraulic Models |
| U-725 |
44 Gallon Tank |
AP-88 |
| U-730 |
54 Gallon Tank |
AP-810 & FPT-2 |
| U-735 |
62 Gallon Tank |
HDH-1010 |
| U-740 |
75 Gallon Tank |
HDH-1212 |
| U-745 |
Muffler |
All Air Oil Models |
| U-750 |
Tank Stand |
All Floor Mounted Tanks |
| U-785 |
Low Oil Control Float |
All Full-Hydraulic Models |
