Parts List and Diagram for Western Lift HR-6 Model Lift

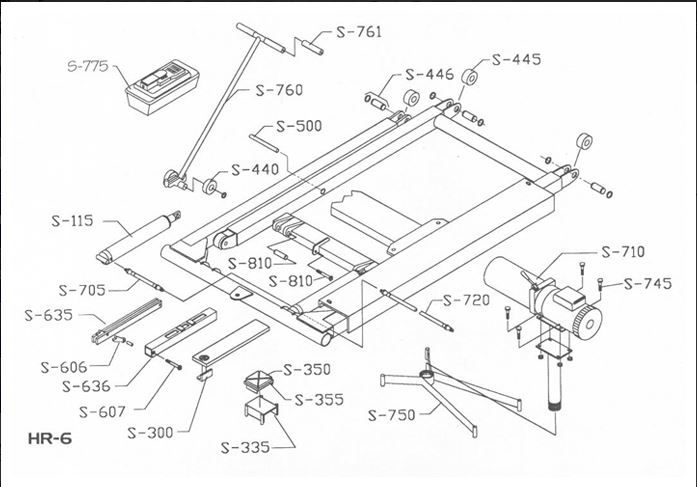

Parts List for Western Lift HR-6 Model Lift View Diagram

Part#     Description

S-600     4″ UPPER/LOWER PULLEY
S-700C    MANUAL RELEASE VALVE SUBASSEMBLY
S-707    MICRO SWITCH ONLY
S-711    SHUT-OFF PLUNGER & BUTTON
S-712    1/8″ SWITCH SHUT-OFF ROD
S-801    ANCHOR BOLT ASSEMBLY (3/4″)
S-833    90 DEGREE FITTING FEMALE TO MALE ENDS
S-900    U SHIMS (PLASTIC) BAG OF 10
S-1010    PUMPING UNIT
S-1020    CYLINDER
S-1030    CABLE 1/4″ X31′-5″
S-1034    ‘ 9″X 1-1’2″ ARM PIN
S-1035    ASYMMETRIC OUTER-ARM FRONT
S-1036    ASYMMETRIC OUTER-ARM REAR
S-1040    STANDARD OUTER-ARM
S-1045    STANDARD INNER-ARM
S-1046    ASYMMETRIC INNER-ARM FRONT
S-1047    ASYMMETRIC INNER-ARM REAR
S-1048    ARM LOCK RELEASE PIN W/HARDWARE
S-1050    OVERHEAD BRIDGE
S-1051    OVERHEAD BUMP BAR
S-1052    BOTTOM PULLEY AXLE
S-1053    TOP PULLEY AXLE W/HARDWARE
S-1054     TOP PULLEY BRACKET
S-1060    HIGH PRESSURE HOSE 28′-0″
S-1061    HIGH PRESSURE HOSE 5’-7″
S-1070    SLIDE BLOCK SET (8)
S-1071    LOCK COVER PUMP SIDE
S-1072    LOCK COVER NON-PUMP SIDE
S-1075    CARRIAGE ASSEMBLY
S-1076    LIFT LOCK NON-PUMP SIDE
S-1077    LIFT LOCK PUMP SIDE
S-1078    LOCK RELEASE CABLES & CRIMPS (SET)
S-1079    LIFT LOCK RELEASE HANDLE & BALL
S-1081    BUMP BAR BRACKET
S-1082    1 -3/8″ ROLLER BRACKET & TEFLON PULLEY
S-1083    CARRIAGE STOP PLATE
S-1084    CARRIAGE STOP PLATE (WRAP AROUND)
S-1085    PUMP LOWERING HANDLE
S-1090    90 DEGREE ELBOW
S-1091    1/4″ TEE FITTING
S-1092    1/4″ X 5-1/2″ NIPPLE
S-1093    1/4″ X 4″ NIPPLE
S-2000    SCREW-UP ADAPTER WITH PAD
S-2001    RUBBER PAD FOR SCREW-UP
S-2002    RUBBER PAD FOR HEIGHT ADAPTER
SVT-1    SET (4) HEIGHT ADAPTERS FOR 7,000 LB.
SVT-2     SET (4) HEIGHT ADAPTERS FOR 9,000 LB.
